Helicopters
There are two helicopters available in the Dalio Fleet for use on either ship: Papa Alpha and Mike Delta. The helicopters are available for mission support upon request and have the following capabilities:

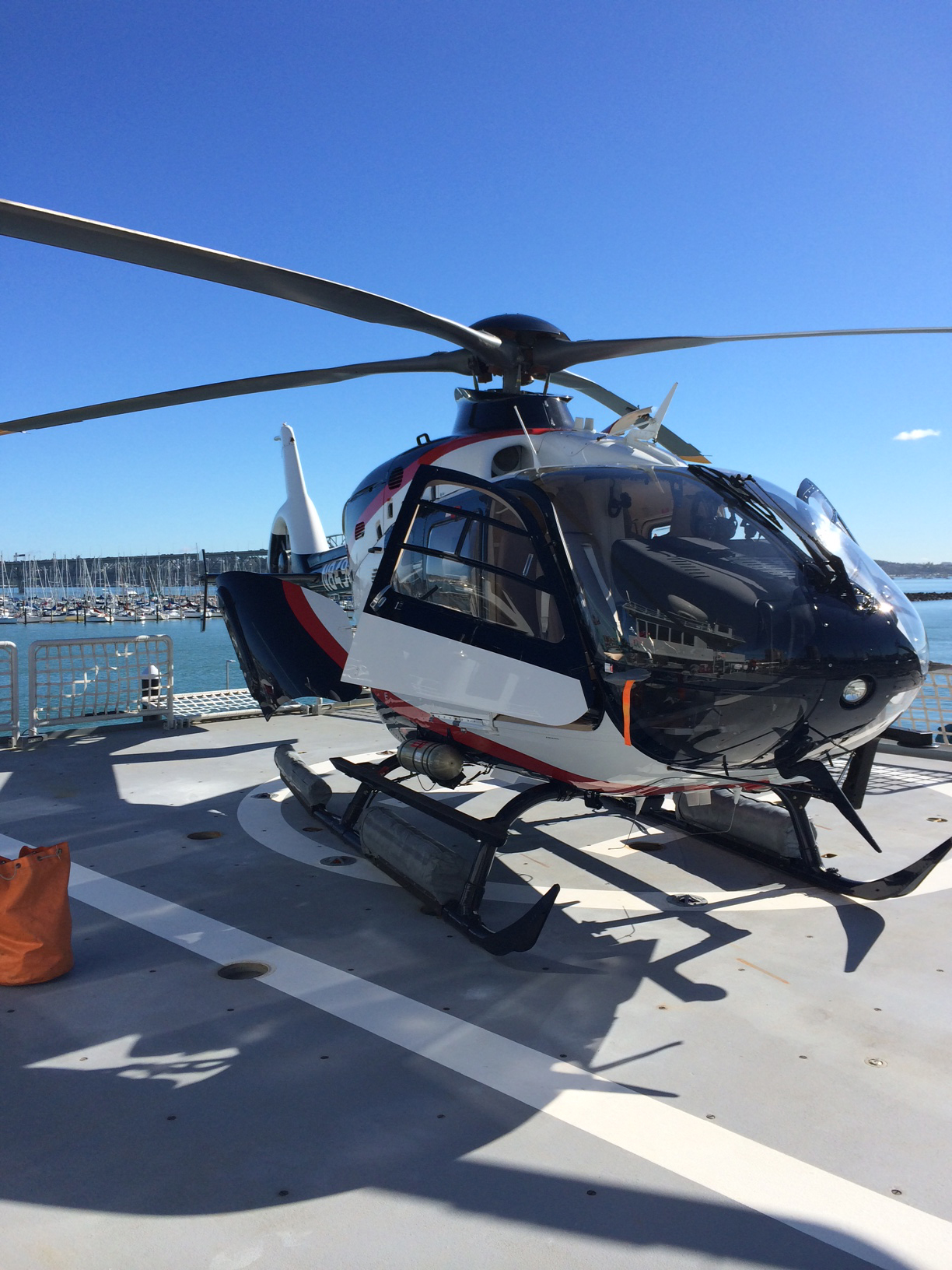

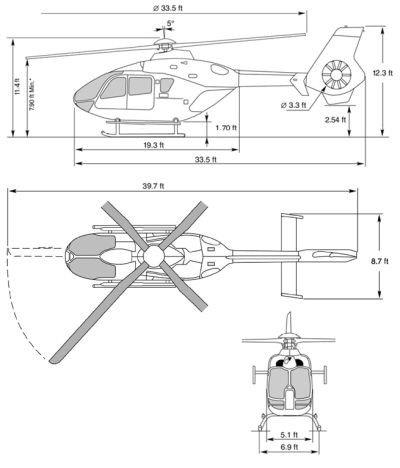

Papa Alpha
Papa Alpha’s panoramic visibility, exceptional maneuverability, twin-engine performance and safety and large V.I.P. cabin make the helicopter perfectly suited for a full range of operational requirements.
General Specifications:
- Empty weight: 4,481 lbs
- Maximum takeoff weight: 6,415 lbs
- Useful load: 1,934 lbs
- Usable fuel capacity (standard tank): 185 gallons
Performance Data:
- Maximum speed: 140 knots
- Cruising speed: 137 knots
- Maximum range: 342 nm
- Maximum endurance: 3.6 hours
- Hover in ground effect ceiling (5 ft. skid height): 10,000 ft
- Hover out of ground effect ceiling: 6,600 ft
- Takeoff power per engine: 667 shp
- Rate of climb (all engines operative, MCP): 1,500 fpm
Seating:
- 5 passengers in the rear cabin
- 1 captain and 1 co-pilot/safety pilot in cockpit
Communications Systems:
- Airband VHF Radio
- VHF FM Radio
- Satellite phone
Emergency Equipment:
- Apical flotation equipment with onboard life rafts
- Emergency Locator Transmitter (including underwater transmitter)
- Automatic Flight Following Tracking
- Engine Fire Detection and Extinguishing System

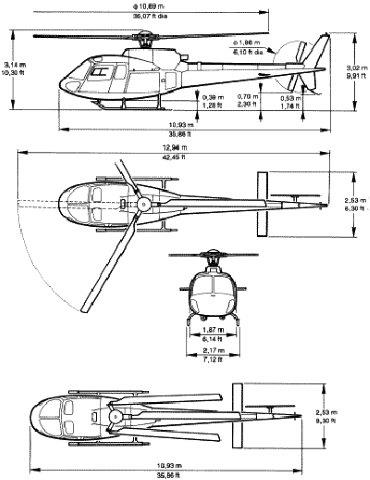

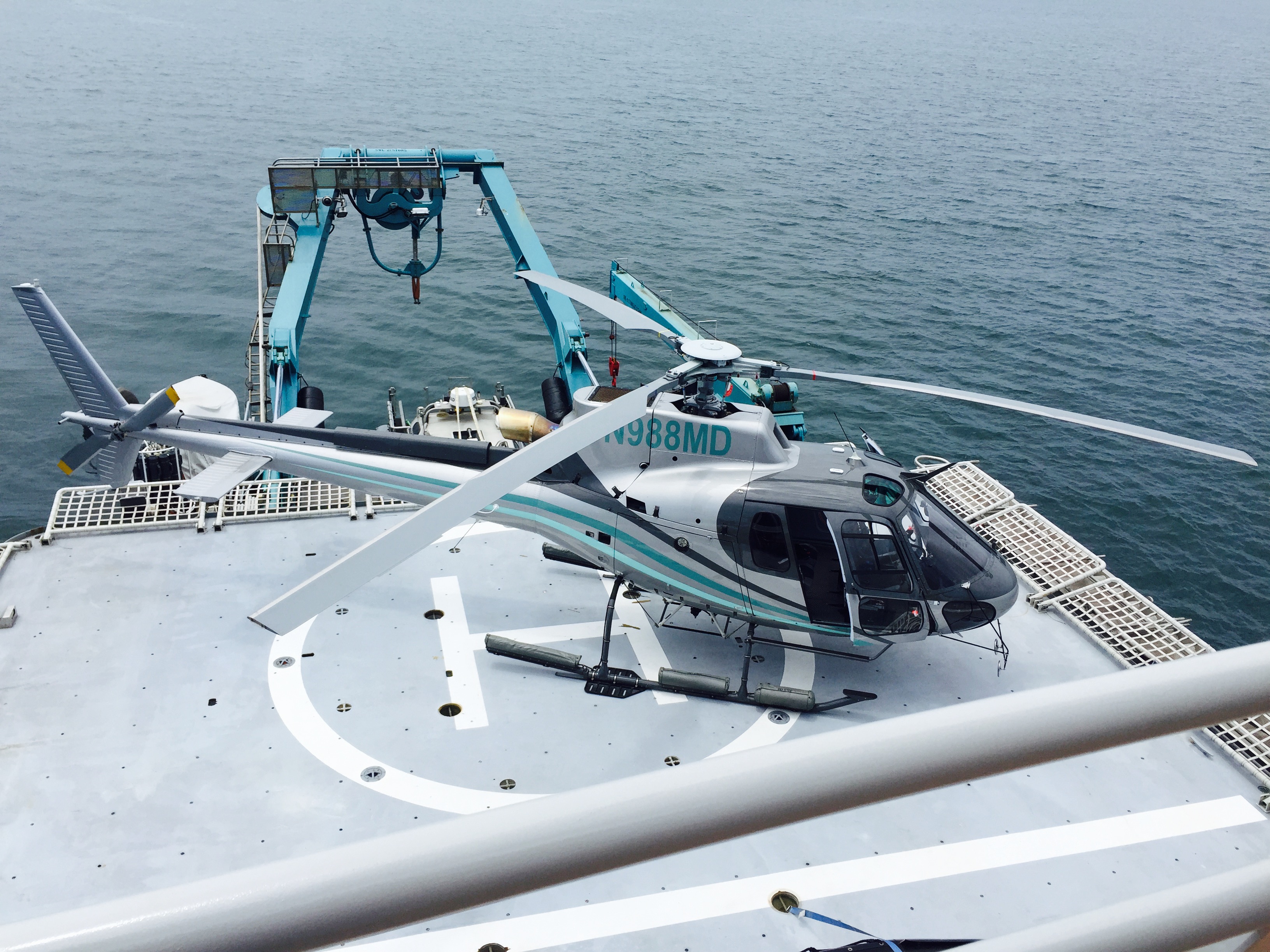

Mike Delta
Mike Delta is a single-engine workhorse with the best performance in its category. High performance, enhanced maneuverability, faster cruise speeds, and lower fuel consumption make this a great option for a variety of work oriented missions, performing well even in the extremes of temperature and altitude.
General Specifications:
- Empty weight: 3,280 lbs
- Maximum takeoff weight: 5,225 lbs
- Useful load: 1,945 lbs
- Maximum takeoff weight (with external load): 6,172 lbs
- Usable fuel capacity (standard tank): 143 gallons (reserve tank: additional 34 gallons)
Performance Data:
- Maximum speed: 155 knots
- Cruising speed: 137 knots
- Maximum range: 349 nm (reserve tank extends to 436 nm)
- Maximum endurance: 4.2 hrs (reserve tank extends range by 25%)
- Hover in ground effect ceiling (5 ft. skid height): 11,600 ft
- Hover out of ground effect ceiling: 9,450 ft
- Takeoff power per engine: 847 shp
- Rate of climb: 1,818 fpm
Seating:
- 4 passengers in the rear cabin
- 1 captain and 1 co-pilot/safety pilot in cockpit
Communications Systems:
- Airband VHF Radio
- VHF FM Radio
- Satellite phone
Emergency Equipment:
- Apical flotation equipment with onboard life raft
- Emergency Locator Transmitter (including underwater transmitter)
- Automatic Flight Following Tracking
- Engine Fire Detection System
- Auxillary fuel tank
Last updated: September 24, 2015
